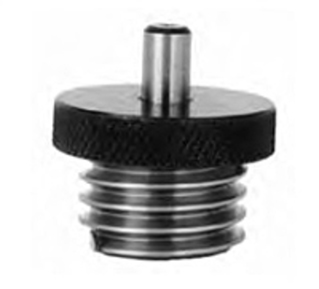

TE-CO 10306 THLG UNC 1/2-13

Manufactured By: TE-CO

Manufacture Part Number: 10306

Product Number: ARP00116301

PRODUCT OVERVIEW:


Technical Specifications:

  • Material:
    – Body: 52100 Steel
    – Collar:12L14 Steel
  • Black oxide finish on collar only
  • Two piece construction
  • Use to accurately measure the distance between two tapped holes in a workpiece
  • Shaft size is the same diameter on all gages to simplify calculation of the hole spread
    – All diameters are concentric within .0002 T.I.R.
  • English:
    – Thread Class: 3A
    – Left-hand thread, helicoil, or other non-standard gages quoted upon request
  • Metric:
    – Thread Class: 6G
    – ISO metric fine pitch thread, left-hand thread, helicoil, or other non-standard gages quoted upon request

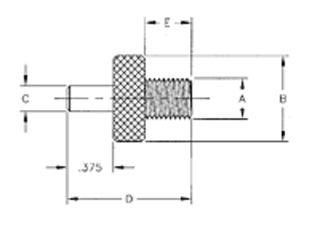

Thread A

1/2-13

Diameter B

0.875 in

Diameter C

0.250 in

D

1.000 in

E

0.375 in

Weight per 100 pcs.

6.00 lb










PURCHASE OPTIONS:

Manufacturer Direct

This is a new product that is shipped directly from the manufacturer in factory sealed packaging.

Your Price: $139.75

You Save $7.35 vs MSRP

Minimum Order Quantity: 1

Usually Ships Within 3 To 6 Weeks
